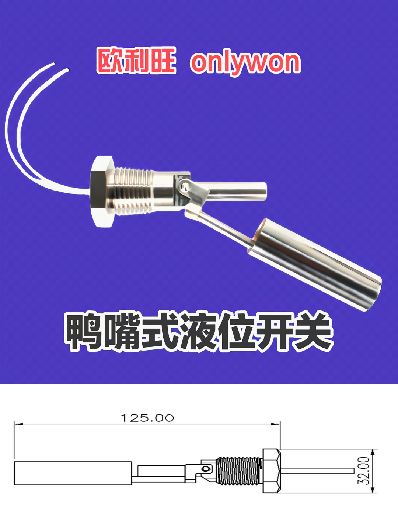

欧利旺鸭嘴式液位开关 LS41-AH1-300
2025-03-22 13:09:44
hensheng

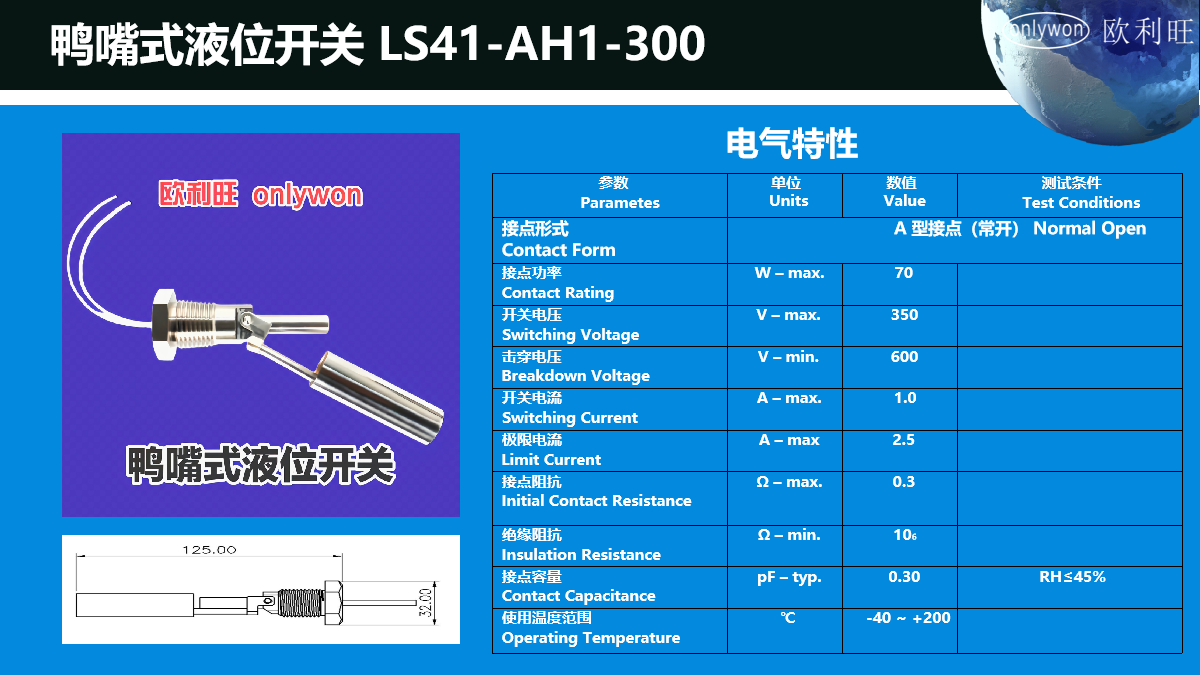

参数 Parametes | 单位 Units | 数值 Value | 测试条件 Test Conditions |
接点形式 Contact Form | A 型接点（常开） Normal Open | ||
接点功率 Contact Rating | W – max. | 70 | |
开关电压 Switching Voltage | V – max. | 350 | |
击穿电压 Breakdown Voltage | V – min. | 600 | |
开关电流 Switching Current | A – max. | 1.0 | |
极限电流 Limit Current | A – max | 2.5 | |
接点阻抗 Initial Contact Resistance | Ω – max. | 0.3 | |
绝缘阻抗 Insulation Resistance | Ω – min. | 106 | |
接点容量 Contact Capacitance | pF – typ. | 0.30 | RH≤45% |
使用温度范围 Operating Temperature | ℃ | -40 ~ +200 | |
